Cables for Audio and Video Applications
Professional Multi-Core Power Cables

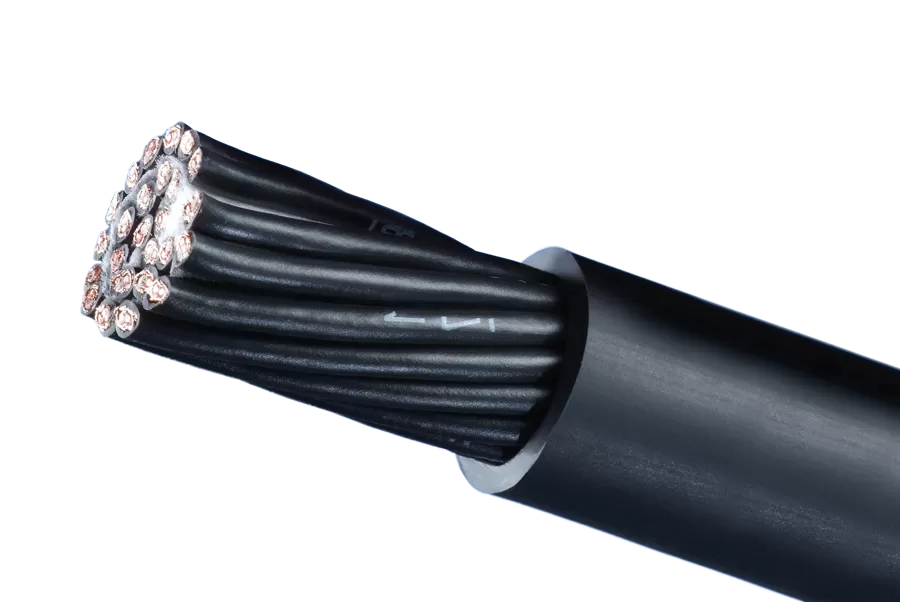

CABLE STRUCTURE

• High-stranded bare copper conductor with high electrical conductivity.
• Insulation with special fire-retardant PVC-based compound
• Cabled assembly with one or more layers of cores with direction of lay reversed in successive layers in order to improve the flexibility and its resistance to torsion stress.
• Outer matt sheath with SOFTECH material (special PVC-based compound with rating of temperature between -20°C and 70 °C, high oxygen index and suitable to guarantee high flexibility, good resistance to mechanical stresses and good fire behaviour) or TECHGUM (special termoplastic material with rating of temperature between -40°C and 70°C, very high oxygen index,that is intended to guarantee high flexibility and mechanical resistance even at lvery ow temperature).
• Marking : it could be customized, on request, with or without trade mark

Rated voltage
450/750 V

Test voltage
2500 V

Rated temperature
70°C

Short-circuit temperature
160°C

Minimum bending radius
8 x D
