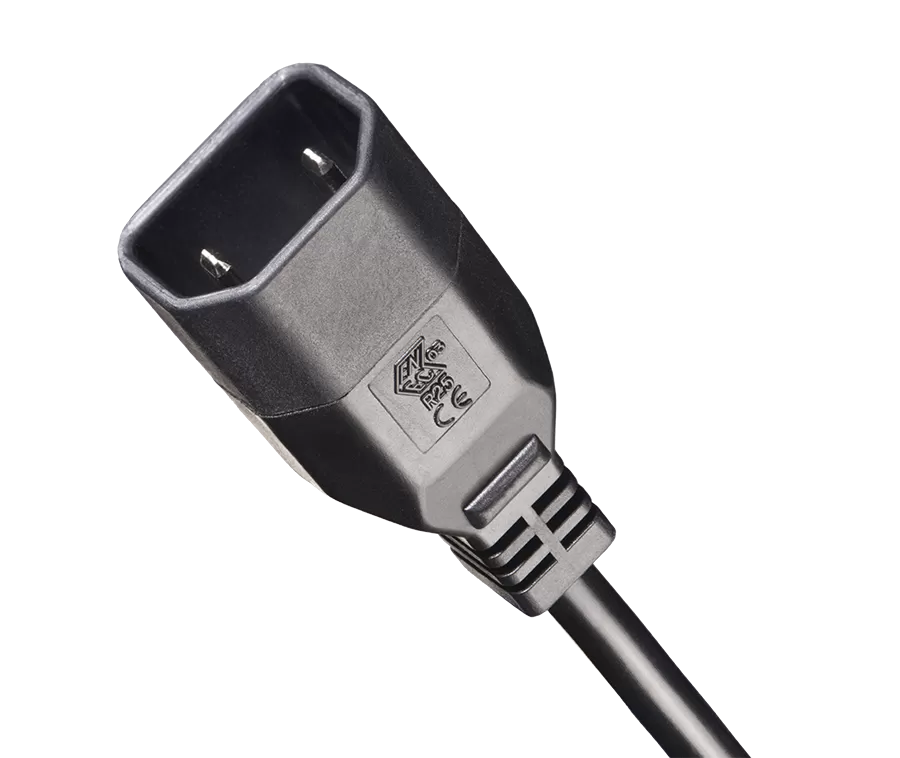

Two-Pole IEC Appliance Inlet R24

Two-pole 10 A IEC appliance inlet.

Two-pole appliance inlet for cold conditions (pin temeprature not exceeding 70 °C), moulded on cable with high high quality polyvinylchloride (PVC). Produced according to standard CEI EN 60320-1:2021, CEI EN 60320-3:2014 + A1 + A2, sheet No. C18G, it is suitable for class II electric devices.




APPROVED CABLES

  • H05VVH2-F   2x0.75 mm2
  • H05VV-F       2x0.75 mm2
  • H05VV-F       2x1 mm2
  • H05VV-F       2x1.5 mm2
Connectors: Two-Pole IEC Appliance Inlet R24

TECHNICAL DATA

  • Rated voltage :                      250 V
  • Maxium admittable current :   10 A
  • Pin dimensions  :                   4.5 x 2 mm
  • Rated voltage

    Rated voltage
    250 V

  • Rated temperature

    Rated temperature
    70°C

  • ENEC

    ENEC
    IMQ license No. CA02.03150
